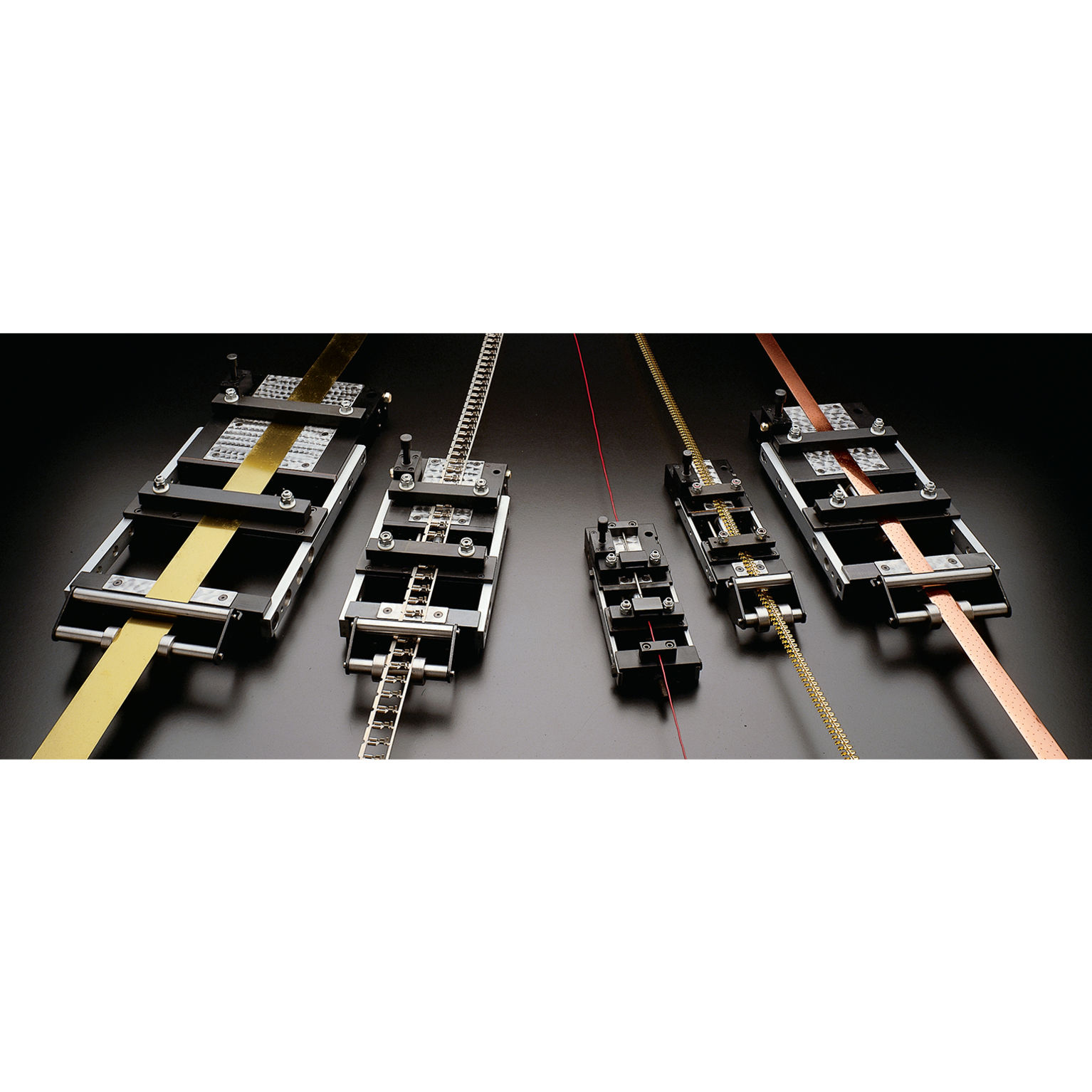

Precision Air Feed

Inexpensive, Fast, Versatile, and Simple to Operate

What more could you ask for? P/A's Precision Air Feeds handle a variety of different materials - Paper, plastic, foil, fabric, wire, tubing...You name it and P/A will feed it. Installation is simple, as are set-ups. And, these Pneumatic Feeders are so economical, many customers leave them permanently mounted to their tools.

Select: Inches Metric

Models
Max Thickness at Full Width (in.) / (in.)
Feed Length Range (in.)
Pulling Power @ 100 PSI (lbs)
Max Speed (SPM)
Request A Quote
AX2
.050/1.5
0-2
25
280
Request Quote
AX4
.045/1.5
0-4
25
220
Request Quote
AX6
.040/1.5
0-6
25
180
Request Quote
CX3
.080/3.0
0-3
50
220
Request Quote
CX6
.075/3.0
0-6
50
160
Request Quote
CX9
.070/3.0
0-9
50
110
Request Quote
CX12
.065/3.0
0-12
50
95
Request Quote
DX4
.075/4.0
0-4
50
195
Request Quote
DX6
.070/4.0
0-6
50
145
Request Quote
FX4
.085/6.0
0-4
110
160
Request Quote
FX6
.080/6.0
0-6
110
140
Request Quote
FX9
.075/6.0
0-9
110
110
Request Quote
FX12
.070/6.0
0-12
110
80
Request Quote
HX4
.075/9.0
0-4
110
145
Request Quote
HX6
.070/9.0
0-6
110
125
Request Quote
HX9
.065/9.0
0-9
110
100
Request Quote
HX12
.065/9.0
0-12
110
70
Request Quote
LX6
.090/12.0
0-6
175
100
Request Quote
LX12
.080/12.0
0-12
175
60
Request Quote
Models
Max Thickness at Full Width (mm) / (mm)
Feed Length Range (mm)
Pulling Power @ 100 PSI (N)
Max Speed (SPM)
Request A Quote
AX2
1,27/38
0-51
111
280
Request Quote
AX4
1,14/38
0-102
111
220
Request Quote
AX6
1,02/38
0-152
111
180
Request Quote
CX3
2,03/73
0-73
223
220
Request Quote
CX6
1,90/73
0-152
223
160
Request Quote
CX9
1,78/73
0-229
223
110
Request Quote
CX12
1,65/73
0-305
223
95
Request Quote
DX4
1,90/102
0-102
223
195
Request Quote
DX6
1,78/102
0-152
223
145
Request Quote
FX4
2,16/152
0-102
490
160
Request Quote
FX6
2,03/152
0-152
490
140
Request Quote
FX9
1,90/152
0-229
490
110
Request Quote
FX12
1,78/152
0-305
490
80
Request Quote
HX4
1,90/229
0-102
490
145
Request Quote
HX6
1,78/229
0-152
490
125
Request Quote
HX9
1,65/229
0-229
490
100
Request Quote
HX12
1,65/229
0-305
490
70
Request Quote
LX6
2,3/300
0-152
779
100
Request Quote
LX12
2,03/300
0-305
779
60
Request Quote
