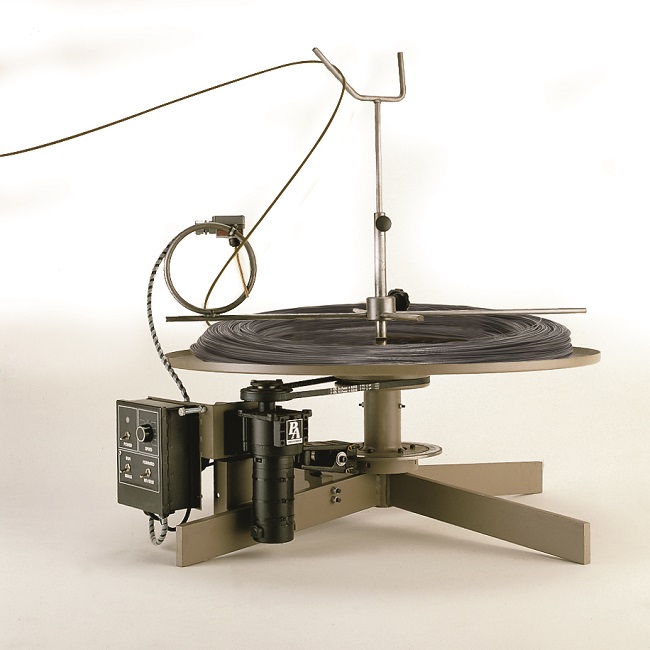

Horizontal Wire Reel


Light Duty Wire Payoff

These reels have a dual bearing design that is housed in a cast iron hub to eliminate the "tip-over" threat - centering the coil on the platen is no longer necessary with this reinforced base. Material can be fed from either direction and taken from inside or outside the of the coil.



Select: Inches Metric

Models
Max Coil Weight (Lbs.)
Max Coil Diameter (in.)
Wire Diameter (in.)
Request A Quote
HWR36
800
36
.25
HWR42
1000
42
.25
HWR56
1200
56
.25
Models
Max Coil Weight (Kg)
Max Coil Diameter (mm)
Wire Diameter (mm.)
Request A Quote
HWR36
360
915
6,4
HWR42
450
1070
6,4
HWR56
540
1425
6,4

No Dimensions Found

No Documents Found
