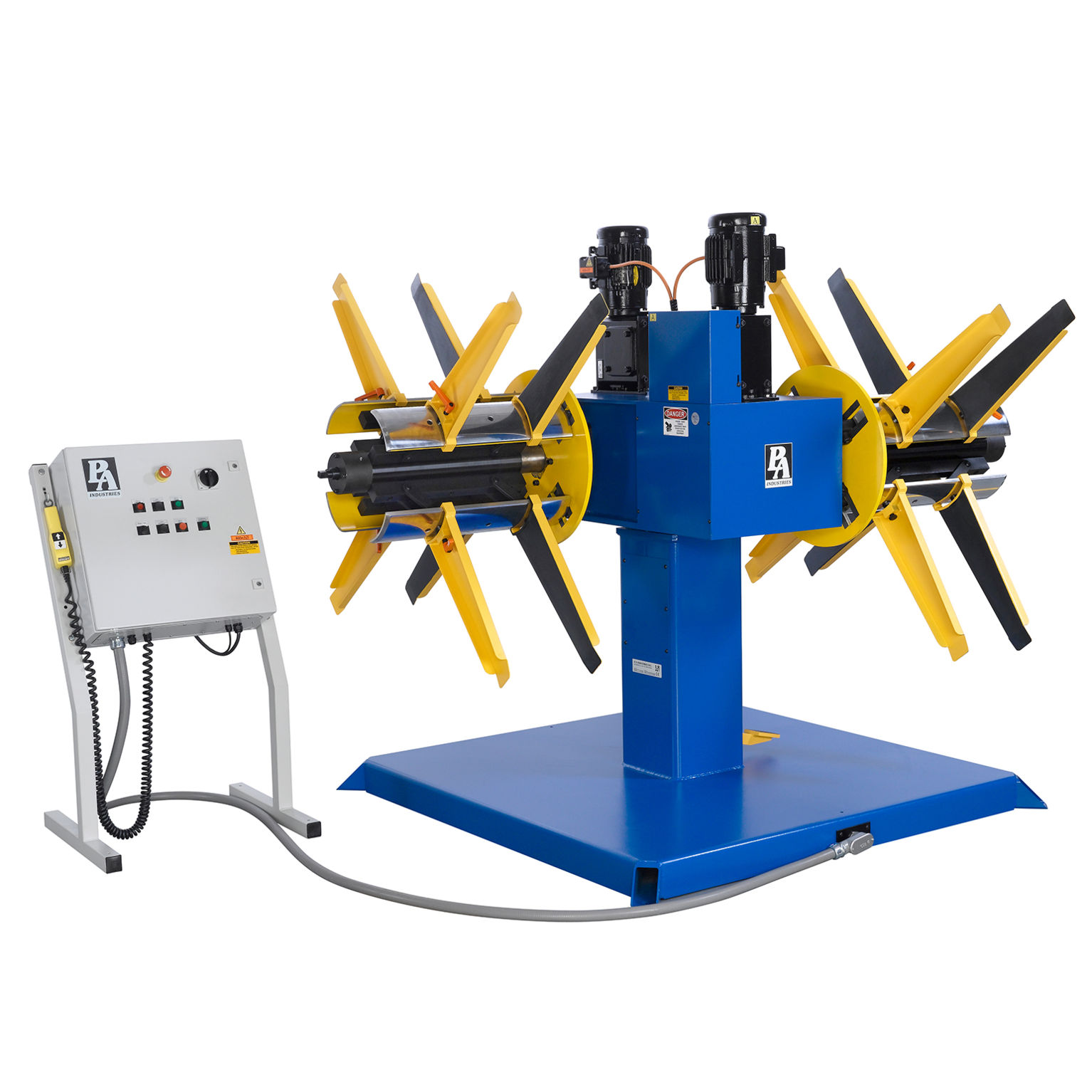

Medium Duty Stock Reels/Decoilers- Dual Mandrel

Two Mandrels = Higher Productivity

Single & Dual Mandrel Available 1600-6500 Lbs. Capacity

Select: Inches Metric

Models
Max Coil Weight (lbs.)
Max. Stock Width (in)
ID Range (in)
Max OD Range (in)
Speed Range (RPM)
Max. Drive Motor (HP)
Input Power VAC/Phase/Hz
Request A Quote
DSRA1612D
1600
12
12-20.5
60
4-23
3/4
120/1/60
Request Quote
DSRA2516D
2500
16
15.7-20.5
60
3-15
3/4
120/1/60
Request Quote
DSRA4524D
4500
24
15.7-20.5
60
3-15
1
230/3/60
Request Quote
DSRA6512D
6500
12
15.7-20.5
60
3-15
2
230/3/60
Request Quote
DSRA6524D
6500
24
15.7-20.5
60
3-15
2
230/3/60
Request Quote
DSRA6536D
6500
36
15.7-20.5
60
3-15
2
230/3/60
Request Quote
Models
Max Coil Weight (kg.)
Max. Stock Width (mm)
ID Range (mm)
Max OD Range (mm)
Speed Range (RPM)
Max. Drive Motor (KW)
Input Power VAC/Phase/Hz
Request A Quote
DSRA1612D
727
305
300-520
1524
4-23
0.56
120/1/60
Request Quote
DSRA2516D
1136
400
400-520
1524
3-15
0.56
120/1/60
Request Quote
DSRA4524D
2045
610
400-520
1524
3-15
0.75
230/3/60
Request Quote
DSRA6512D
3000
305
400-520
1524
3-15
1.50
230/3/60
Request Quote
DSRA6524D
3000
610
400-520
1524
3-15
1.50
230/3/60
Request Quote
DSRA6536D
3000
915
400-520
1524
3-15
1.50
230/3/60
Request Quote

No Dimensions Found

No Documents Found
