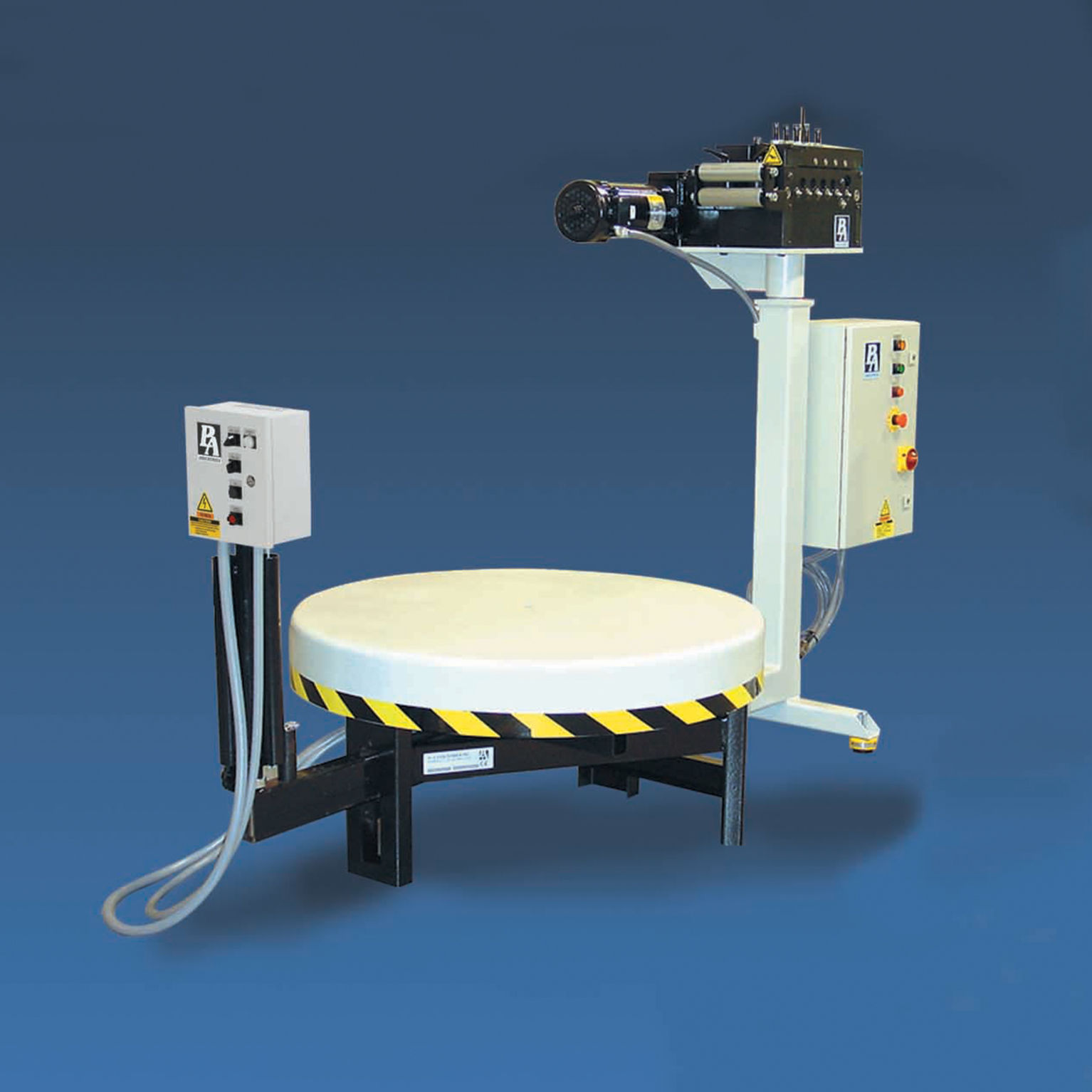

horizontal payoff pallet reel straightener

Pallet Reel Straightener

The Pallet Reel Straightener Combination

Incorporates all of the features of the Palletizer models with the efficiency of the P/A Straightening Head. Payoff pre-stacked material into the Straightener when space is at a premium.

* Regenerative Drive
** Specify When Ordering, Metric Only
Tension Guide Rollers up to 22" (560mm) are available.
Coil Weights up to 10,000 lbs. (4500 kg) are available.
Wire Guides available.

Select: Inches Metric

Models
Max Coil Weight (lbs.)
Max. Stock Width (in)
Thickness Range (in)
Max OD Range (in)
Speed Range (RPM)
Max. Drive Motor (HP)
Input Power VAC/Phase/Hz
Request A Quote
PR4/SS49LC3
4000
4
0.015-0.065
42
3-24
3/4
220/1/60
Request Quote
PR4/SSP29LC3
4000
2
0.005-0.040
42
3-24
3/4
220/1/60
Request Quote
PR4/SSP49LC3
4000
4
0.005-0.040
42
3-24
3/4
220/1/60
Request Quote
PR4/SSP69LC3
4000
6
0.005-0.030
42
3-24
3/4
220/1/60
Request Quote
PR6/SS49LC3
6000
4
0.015-0.065
52
3-16
1.5
220/1/60
Request Quote
PR6/SS89LC3
6000
8
0.018-0.065
52
3-16
1.5
220/1/60
Request Quote
PR6/SSP29LC3
6000
2
0.005-0.040
52
3-16
1.5
220/1/60
Request Quote
PR6/SSP49LC3
6000
4
0.005-0.040
52
3-16
1.5
220/1/60
Request Quote
PR6/SSP69LC3
6000
6
0.003-0.030
52
3-16
1.5
220/1/60
Request Quote
Models
Max Coil Weight (kg.)
Max. Stock Width (mm)
Thickness Range (mm)
Max OD Range (mm)
Speed Range (RPM)
Max. Drive Motor (KW)
Input Power VAC/Phase/Hz
Request A Quote
PR4/SS49LC3
1800
100
0.4-1.6
1070
3-24
0.56
220/1/60
Request Quote
PR4/SSP29LC3
1800
50
0.1-1.0
1070
3-24
0.56
220/1/60
Request Quote
PR4/SSP49LC3
1800
100
0.1-1.0
1070
3-24
0.56
220/1/60
Request Quote
PR4/SSP69LC3
1800
150
0.1-0.8
1070
3-24
0.56
220/1/60
Request Quote
PR6/SS49LC3
2700
100
0.4-1.6
1325
3-16
1.12
220/1/60
Request Quote
PR6/SS89LC3
2700
200
0.5-1.6
1325
3-16
1.12
220/1/60
Request Quote
PR6/SSP29LC3
2700
50
0.1-1.0
1325
3-16
1.12
220/1/60
Request Quote
PR6/SSP49LC3
2700
100
0.1-1.0
1325
3-16
1.12
220/1/60
Request Quote
PR6/SSP69LC3
2700
150
0.1-0.8
1325
3-16
1.12
220/1/60
Request Quote
