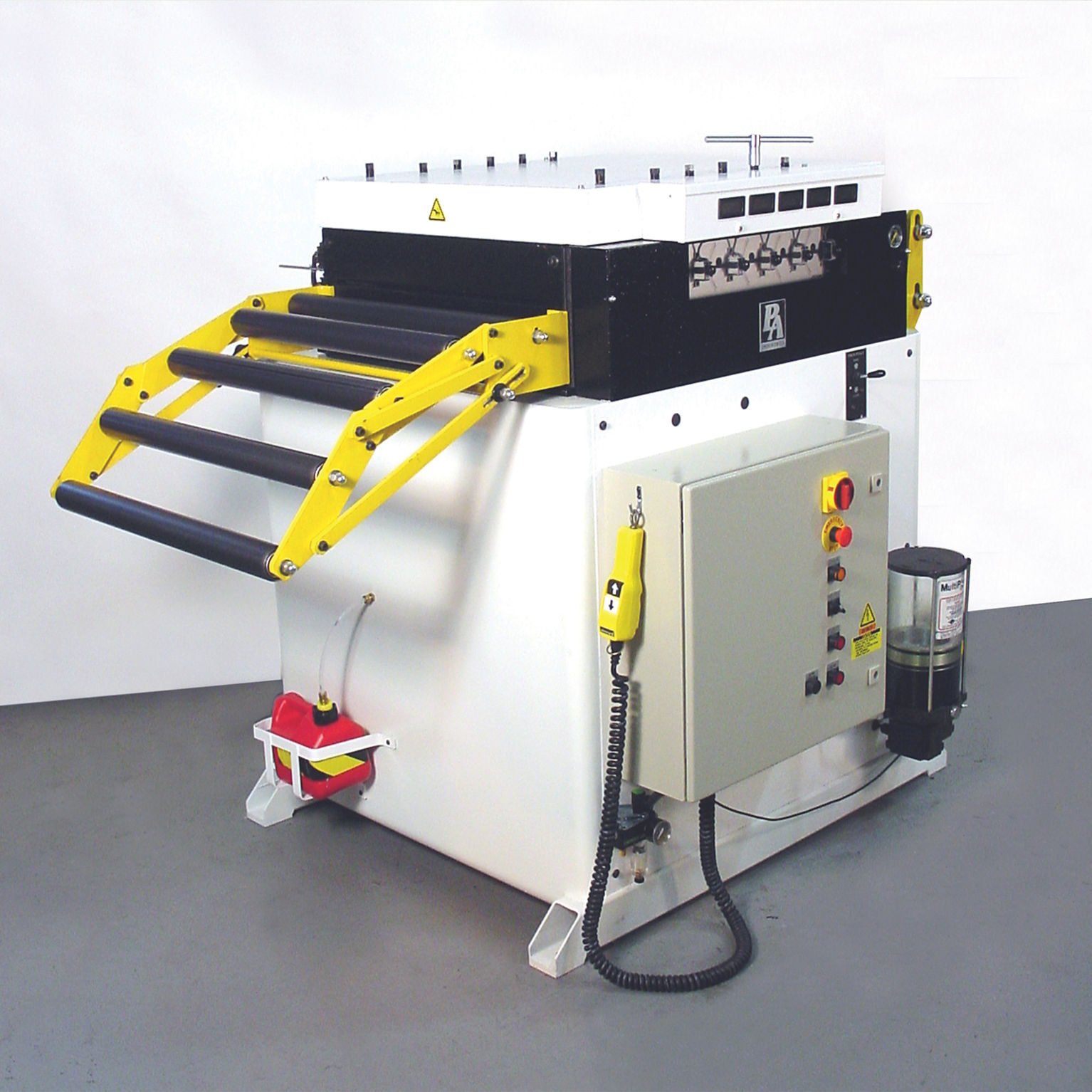

heavy-duty parallel shaft straightener

Heavy-Duty Straighteners

P/A's Heavy Duty Straightener provides the quality construction required to meet your production needs.

These units are manufactured with solid, cast iron side frames that are jig bored to insure bearing journal and roll parallelism. Oversized rolls (over 3" in diameter) are made from alloy steel, case hardened to Rockwell C-60, and then ground. They are equipped with a heavy duty, parallel shaft, helical gear reducer and variable speed motor. An outboard bearing support for the drive sprocket minimizes deflection.

Entrance and exit pinch rolls are driven. Vertical entrance guide rollers are provided for ease of adjustment. An Ultrasonic Loop Control System monitors the material loop and speed.


Select: Inches Metric

Models
Max. Stock Width (in.)
Max. Stock Thickness (in.)
# of Straightener Rolls
AC Power Input
Request A Quote
SS87HD
8
.200
7
230/3/60
Request Quote
SS127HD
12
.189
7
230/3/60
Request Quote
SS167HD
16
.187
7
230/3/60
Request Quote
SS207HD
20
.165
7
230/3/60
Request Quote
SS327HD
32
.091
7
230/3/60
Request Quote
SS407HD
40
.083
7
230/3/60
Request Quote
SS507HD
50
.068
7
230/3/60
Request Quote
Models
Max. Stock Width (mm)
Max. Stock Thickness (mm)
# of Straightener Rolls
AC Power Input
Request A Quote
SS87HD
200
5,08
7
230/3/60
Request Quote
SS127HD
300
4,8
7
230/3/60
Request Quote
SS167HD
400
4.5
7
230/3/60
Request Quote
SS207HD
500
4.2
7
230/3/60
Request Quote
SS327HD
800
2,3
7
230/3/60
Request Quote
SS407HD
1015
2,1
7
230/3/60
Request Quote
SS507HD
1270
1,7
7
230/3/60
Request Quote
